OMEGA FIRE
-
Sludge Pulverize Omega Fire ( Homogenizer )
As a countermeasure for poor quality Fuel Oil having such a Soft Sludge, Alumina, Silica, thousands of Omega Fire have been working in success results.Used together with
- NAG Type Fine Filter ( Eliminating Alumina and Silica )
- NHFS Type Auto Back Wash Filter (by Auto type Strainer)
- Emulsion System (Countermeasure for CO2,NOx in Exhaust gas)
- Blender System ( OMEGA Blender )
- Treatment System of Waste Oil System (Waste Oil Treatment System)

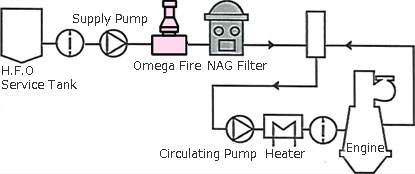

Removing equipment of Alumina , Silica contained in the Heavy Fuel Oil.
A lot of Sludge are grown on the surface of the Alumina , Silica in the oil.
If this oil is treated by OMEGA FIRE, only bared Alumina, Silica are to be discharged, then go through the NAG Filter where bared ones are clearly removed ,resulting the Element Life to extend.

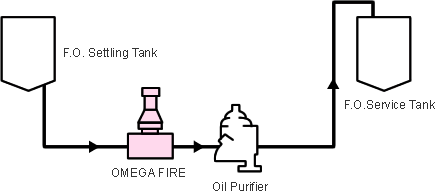

Placing before Purifier
The Soft Sludge cored with AL, Silica grown before Purifier are pulverized and melting, give less maintenance cost from less Waste Oil.

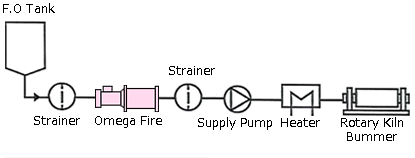

Use as pre-treatment device before Rotary-Kiln, Incinerator.
Even use Recycled Oil, maintenance of Strainer is extremely few and bring effective less maintenance Pump, Flow Meter. Furthermore, makes less waste oil, and makes improving oil combustion.
Anti Sludge at Tank Recycling Operation.

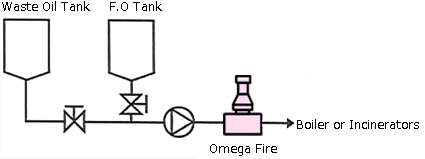

Treatment of Waste Oil and Measure of Combustion
Omega Fire Standard Supecification
Before used Omega Fire
After used Omega Fire
OMEGA FIRE, Standard Specifications
| TYPE | Motor output | Flange JIS 10K | Max Capacity | |
|---|---|---|---|---|
| Input | Output | |||
| SM-500A | 0.75kWx4P | 25A | 25A | 300 |
| SM-1000A | 1.5kWx4P | 50A | 50A | 700 |
| EN-1000 | 3.7kWx4P | 65A | 65A | 1200 |
| EN-2500 | 7.5kWx4P | 80A | 80A | 2400 |
| EN-5000 | 15kWx4P | 100A | 100A | 5000 |
OMEGA Fire Function
By means of using combined with High-Turbulence type Impeller and D.S. Impeller, to shearing and pulverizing the sludge so as to be its surface tension decreasing and melting it by force turbulence flow. And further, to generate a partly vacuum zone in the shell and to make pulverize it in micro by Cavitation energy.
Application of Omega Fire
Keep in good condition those Filter, Pump and Flow-Meter used in Combustion of Inferior Heavy Fuel Oil for Rotary-Kiln, incinerator and Boiler, and making their good combustion performance. Such as Anti-Sludge policy for the poor Heavy Fuel, keeping Engine maintenance and saving its Fuel Oil. With using together of NAG Filter in line, solid substance (Catalyst for Alumina, Silica etc..) can be eliminated.
Latest reference of new products
Delivery results has recorded about 600 units supplied. (Until 2012/Oct)
In Land use, at Lime Industries Field, it has merit in less maintenance of Strainers for making reducing cost and also saving cost for electric heating(Heater) in adjusting of Fuel Oil viscosity, which is expecting totally saving 1,700～ 2,500 thousand Yen. a year as a cost down merit.
Delivery results of Emulsion Product Machine to Lime Industries and Cement Industries has recorded about 20 units supplied. (Until 2012/Oct)

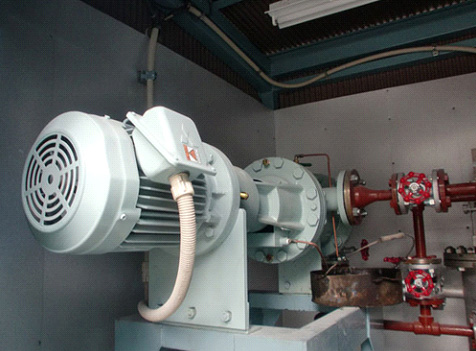

Photo at Delivery Photo at its delivery address to A Co.
Related Product
*This specifications may be subject to change without any notice
