Emulsion Fuel Oil System

Emulsion Fuel Oil System
ownload Catalogs

Which is the system making a emulsion oil with mixing Fuel Oil and water as a Combustion Oil. From which is resulting to keep the clean condition in the boiler furnace and make good heat transition efficiency and makes possible no smoking combustion , saving fuel oil and less exhausting CO2 gas and Nitro Gas(NOx).

Preventing from Air pollution and saving energy

Fuel oilWater = Complete combustion.

With a help of complete combustion made and realizing saving Fuel oil and reducing the NOx emission, then resulting contribution of preventing measure for air pollution.

Preventing from Air pollution and saving energy

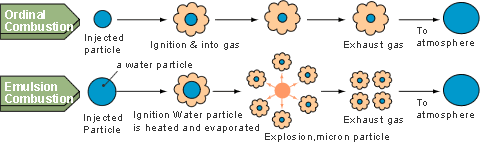

What Emulsion is

A water contained in Fuel Oil and is made as a super micron during fuel combustion is momentary expanding about 4000 times, and make this oil drop covering a water into micron. Then, forming as a fuel mixed with combustion air completely for promoting of oil atomizing for achieving complete combustion of the Engine.

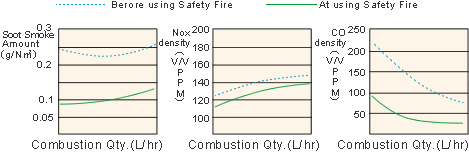

Effect of Safety Fire

Effect of Safety Fire

  • Perfect Combustion give Fuel save ( Reduce 10%~15% refer our sales record )
  • Less CO2 realized
  • Decreasing Fuel Oil expenses by transforming use to Heavy Fuel Oil.
  • Less Soot and Dust emission , Anti-Public pollution.
  • Keeping high efficiency with less-fouls of heating surface.
  • Preventing air pollution from exhausting CO,2, NOx and SOx.
Condition of only Fuel Oil Combustion
Condition of only Fuel Oil Combustion
On Mixed 20% Water Combustion
On Mixed 20% Water Combustion

Example of effect with using the Safety Fire(by boiler combustion)

  Dust Qty Sulfur oxides Qty.(SOx) Nitrogen oxides Qty.(Nox) oxygen density in exh. Gas Carbon acid density
(g/m3N) (g/m3H) (cm3/m3N) (%) (%)
Conventional
Combustion
0.061 0.45 222.2 7.8 16.0
Emulsion
combustion
0.033 0.44 141.7 4.5 10.5

Merit

  • The equipment is to work as in-line system.
  • No need of stabilizer to prevent from separating Emulsion Fuel.
  • Safety Fire where no chemicals is required because of using agitating device combined with supersonic and shearing machine.
  • As an automatic system which is developed by ourselves is equipped, operation is very simple.
  • Possible to produce 3 kinds of Emulsion Fuel. (Fuel, Waste Oil, Water..etc) by Simultaneously mixing. That is of "Killing three birds with one stone."

Application

  • Boiler
  • Rotary Kiln ( Lime Burning Unit, Firing Cement Unit, Incinerator, Manufacturing Alumina )
  • Possible to use it as incinerator for Waste Water, Waste Oil, Liquid Wasted

Latest reference of new products

20 units as delivery result. ( Until 2012 Oct )
Emulsion Combustion Unit , Waste Water Combustion Unit, Waste Oil Combustion ..etc, Will have various uses in further.
