Manual Back Wash Strainer (NHFS-M Series, NHLS-M Series)

With adoption of a sintered wire mesh realizes 3 merits as follow:.

Life is resulting very long
Performing in High precision filtering.
Excellent in strength.

Its Super longevity is a key to sintered wire type element !

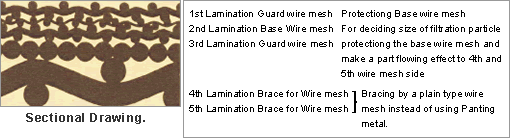

Sintered Wire Meshes is ;

Sintered wire mesh is made of unified laying up with several wire meshes by heating up in vacuum and produced as an ideal filtration mesh structure.
Besides, 3~5 layer of the sintered wire meshes can be made in case of need.

To be more fine filtration ability

Readily available variously in response to its flow rate and filtration degree.

PAGE TOP

Selection Table for Fuel oil System

	10μm （L/h）	20μm （L/h）	40μm （L/h）	70μm （L/h）
NHFS-25MB	2000	5000	7300	9200
NHFS-65MBs	4000	10000	14600	18400
NHFS-65MB	6000	15000	21900	27600
NHFS-80MBs	8000	20000	29200	36800
NHFS-80MB	12000	30000	43800	55200

Selection Table for Lubricating Oil System

	20μm （m³/h）	50μm （m³/h）	75μm （m³/h）
NHLS-50M	19	35	63
NHLS-100M	33	60	108
NHLS-200M	55	100	180
NHLS-300M	82	150	270
NHLS-400M	132	240	432

Merit

Inexpensive from its simple structure, easy overhaul. And Further Less trouble.
From adopted sintered wire, its life is resulting very long.

Applied Example

Filtration for Marine Fuel Oil and Lubrication Oil.
Filtration for industrial use of Fuel Oil and Lubrication Oil.
And other various kinds of Filter.

Latest reference of new developed products

Delivery results has recorded about 400 units supplied. (Until 2012/Oct, included Auto type)
Its Manual change-over type is simple handling in operation.

PAGE TOP

Related Product

*This specifications may be subject to change without any notice
